Used Catering SMEG UD505DSUK Undercounter Dishwasher with Drain Pump and Integral Water Softener(Single Phase)

SMEG UD505DSUK Undercounter Dishwasher

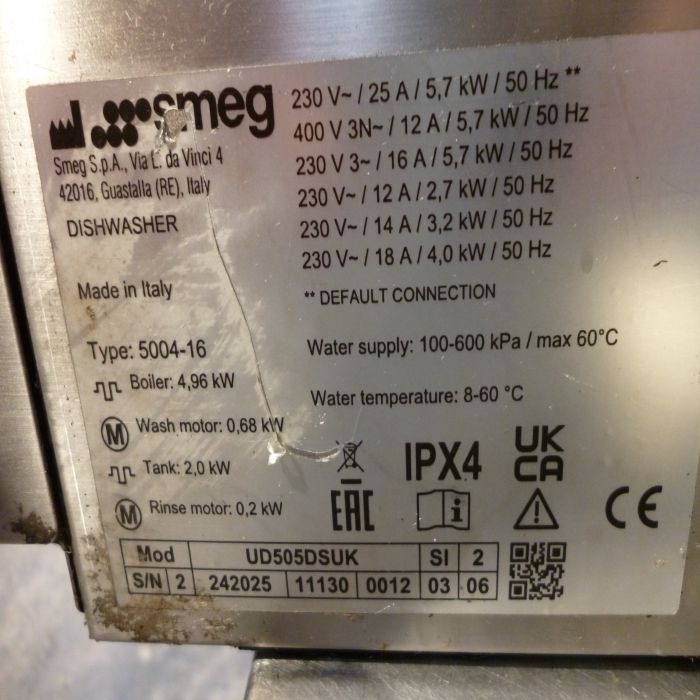

Model – UD505DSUK

In good working condition.

Smeg commercial dishwasher are created to guarantee the best wash results with the lowest power consumption, Smeg professional front loading dishwashers are designed with painstaking care, right down to the smallest details using the latest technology. From the hydraulic circuit to the electronic control panel, the double skinned and insulated structure with thermal-acoustic insulation right through to the pressed tank with rounded corners, all innovative features have been included to guarantee optimal wash and rinse results.

Features

• 500mm Basket
• Integral water softener
• Basket dimensions: 500 x 500mm
• Baskets per hour: 40 / 24 / 15
• Number of programs: 3
• Thermo-acoustic insulation: Door
• Rinse aid dispenser: Peristaltic pump with electronic adjustment via the control panel
• Detergent dispenser: Peristaltic pump with electronic adjustment via the control panel
• Rinse system: Atmospheric boiler and rinse pump (HTR system)
• Drain system: Drain pump and four stage filter system with partial water exchange in the wash tank
• Filtering system: Full width 2 piece plastic top wash tank filter with double stage filtration in the sump and additional micro
  filter for wash pump protection
• Water consumption per cycle: 3.2L

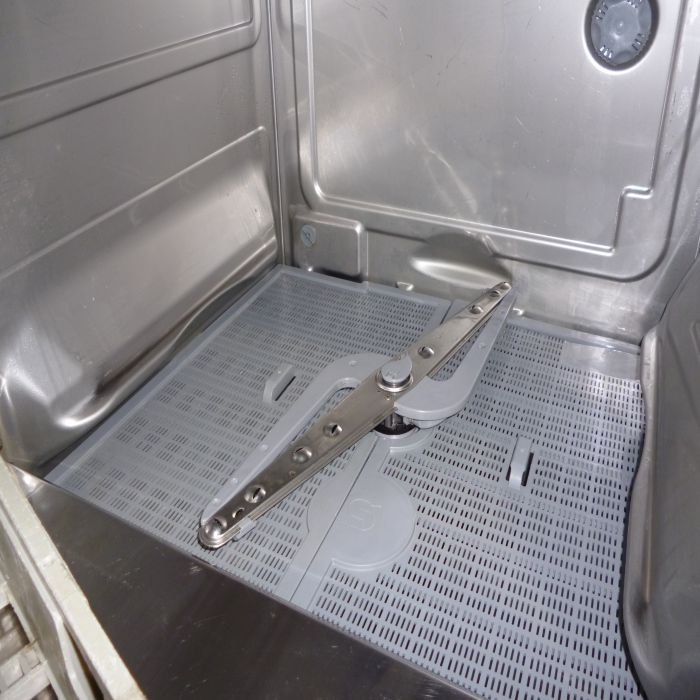

• Wash and rinse arms: 2 x combined wash and rinse arms with quick release system.
• Insulated double skinned door
• Selectable: FRESH WATER function for complete wash tank water replacement after each wash cycle
• Selectable: EXTENDED-RINSE function for a prolonged rinse
• Thermostop for controlling the rinse water temperature
• Self-diagnosis system with fault warning
• Moulded basket guides
• Drain pipe on the boiler for complete drainage
• ‘Stand-by’ function of the heating elements during periods of non-use
• Connection to water mains with a 3/4 threaded fitting on the back of the appliance
• Self cleaning cycle available as standard
• Adjustable feet



Technical



Structure: Single skinned in AISI 304 stainless steel
Control type: Electronic soft touch controls

Useable loading height: 365mm
Wash tank capacity: 13L

Boiler capacity: 6L
Boiler heating element: 5kW 1ph
Wash tank heating element: 2.0kW
Inlet water maximum temperature: 60°C

Wash system: Wash pump with ‘Soft start’ system
Wash pump: 0.7kW
Required electrics and fuse protection: 1ph 5.7kW 25A

Outside dimensions (WxDxH): 580 x 600 x 820mm ( 1500mm high on stand)
Weight: 55kg

Warranty ; 30 days, back to base
